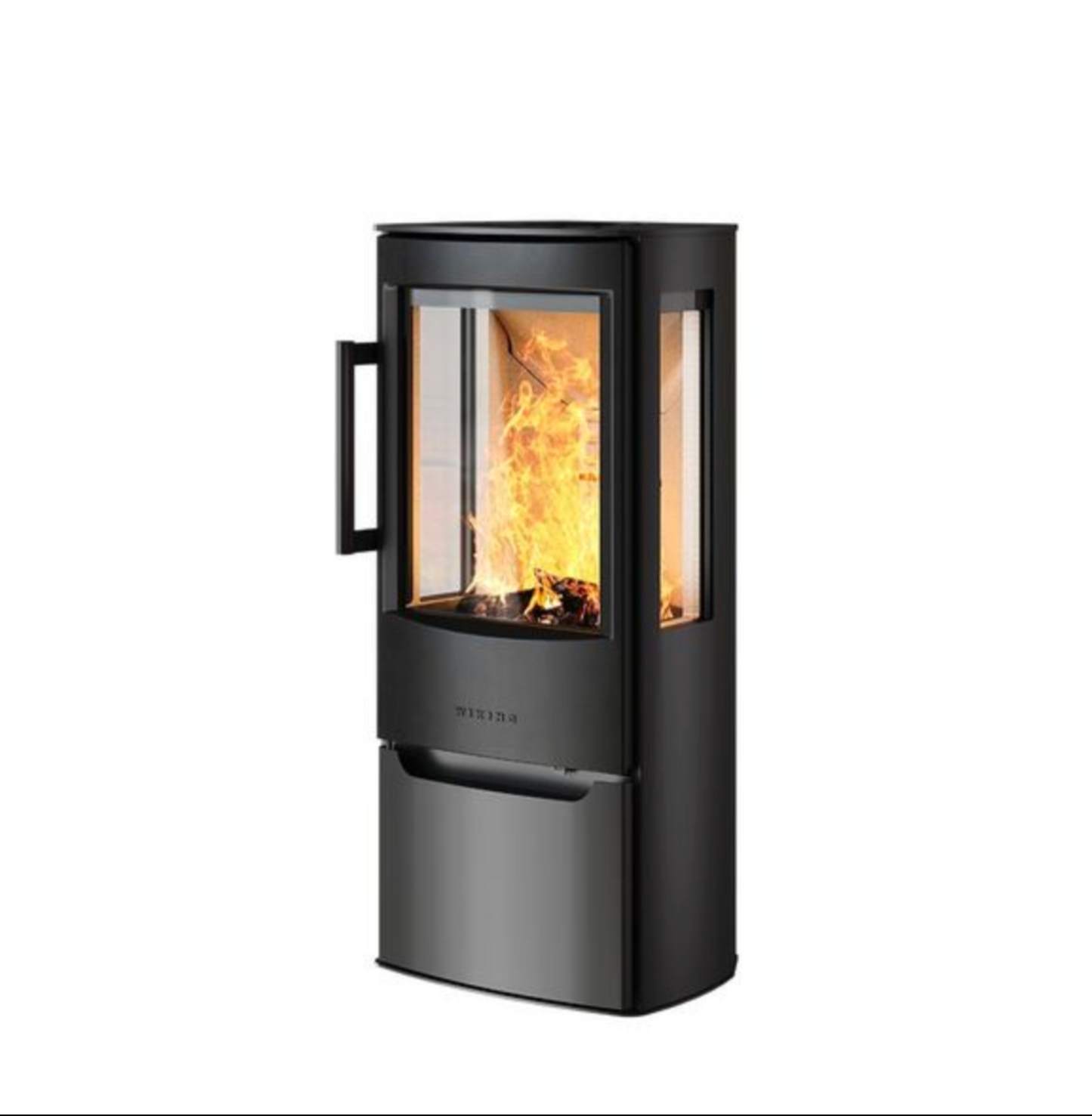

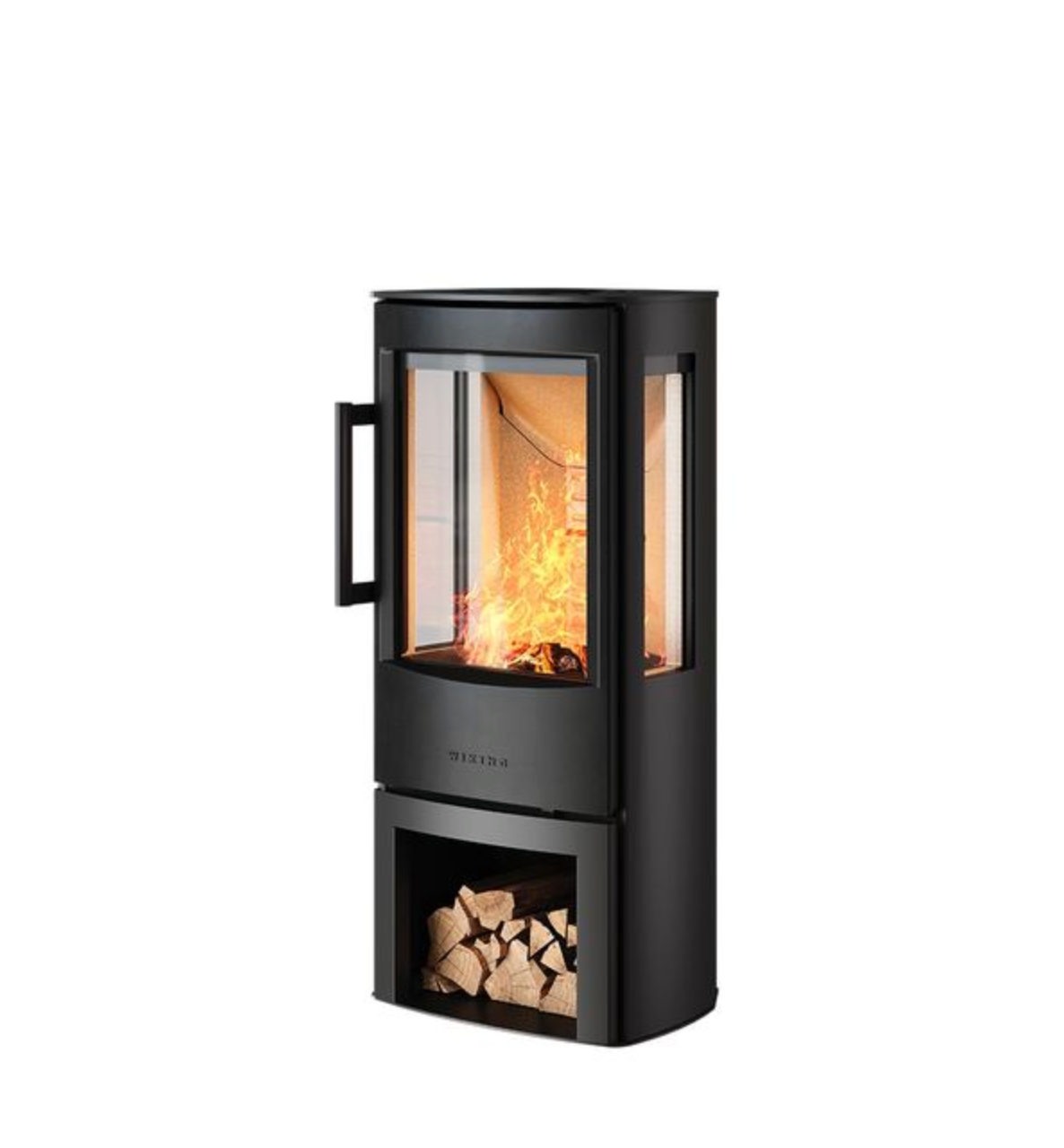

Wiking Miro 3

Wiking Miro 3

£2,135.00 GBP
£2,135.00 GBP
Sale Sold out
Tax included.

Combustion Air System
No oxygen, no fire. It’s that simple. That is why a constant flow of air to the wood-burning stove is needed to create clean and effective combustion in your HWAM.

WIKING® Automatic™
In a WIKING wood-burning stove, the regulation of air during lighting and re-stoking is managed automatically through the WIKING® Automatic™ device.

Please not: stone cladding, steel and glass floor plates available for some models. Please contact us for more information - 01869 222444 or info@oxfordshirestovesandinteriors.co.uk.



Technical data
Energy efficiency class WIKING® Autopilot™ - A
WIKING® Autopilot™ - Yes
Efficiency (%) - 75
Nominal heat output (kW) - 4.4
Smoke outlet (Ø - )5"/6"
Chimney draught, recommended (Pa) - 12

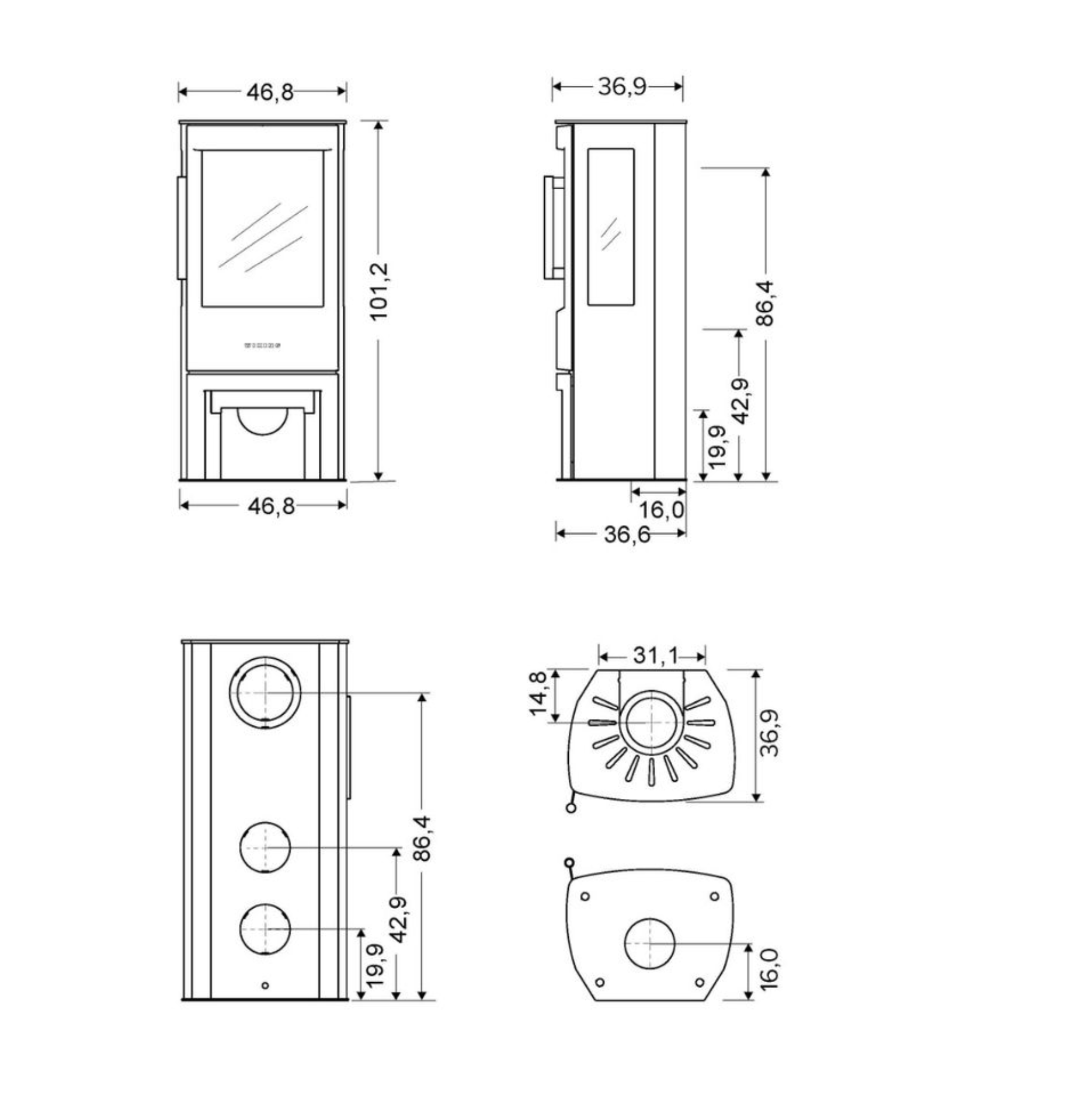

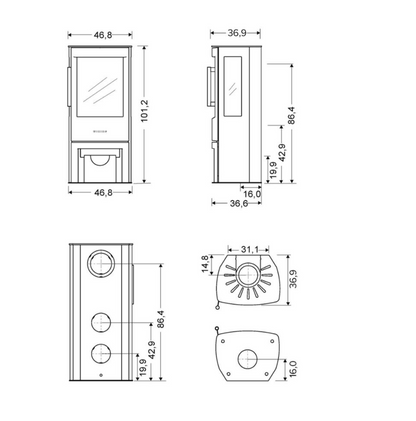

Product measurements (cm)
Height - 101.2
Width - 46.8
Depth - 36.9
Combustion chamber - 35/32

Weight (kg)
Steel cladding, c/m door - 104

Fresh air kit
Combustion air system can be mounted, back (Ø 100 mm) - additional purchase - Yes
Combustion air system can be mounted, bottom (Ø 100 mm) - additional purchase - Yes

Combustion air system
Combustion systemWIKING® Autopilot™

Distance to combustible materials (cm)
Mantel piece - 50
Floor - 0
Ceiling - 50

Distance to combustible materials, insulated flue gas pipe (cm)
Behind - 10
Side - 50
Sides, in front of the stove - 50
In front - 110
Furnishing in front - 110
Corner, 45° - 26.5

Distance to combustible materials, uninsulated flue gas pipe (cm)
Behind - 15
Side - 50
Sides, in front of the stove - 50
In front - 110
Furnishing in front - 110
Corner, 45° - 26.5

Approvals
EN 16510 - Yes
EN 16510 type CA - Yes
BImSchV Stufe 2 - Yes
DEFRA Exempt - Yes
ECODESIGN Compliant - Yes
