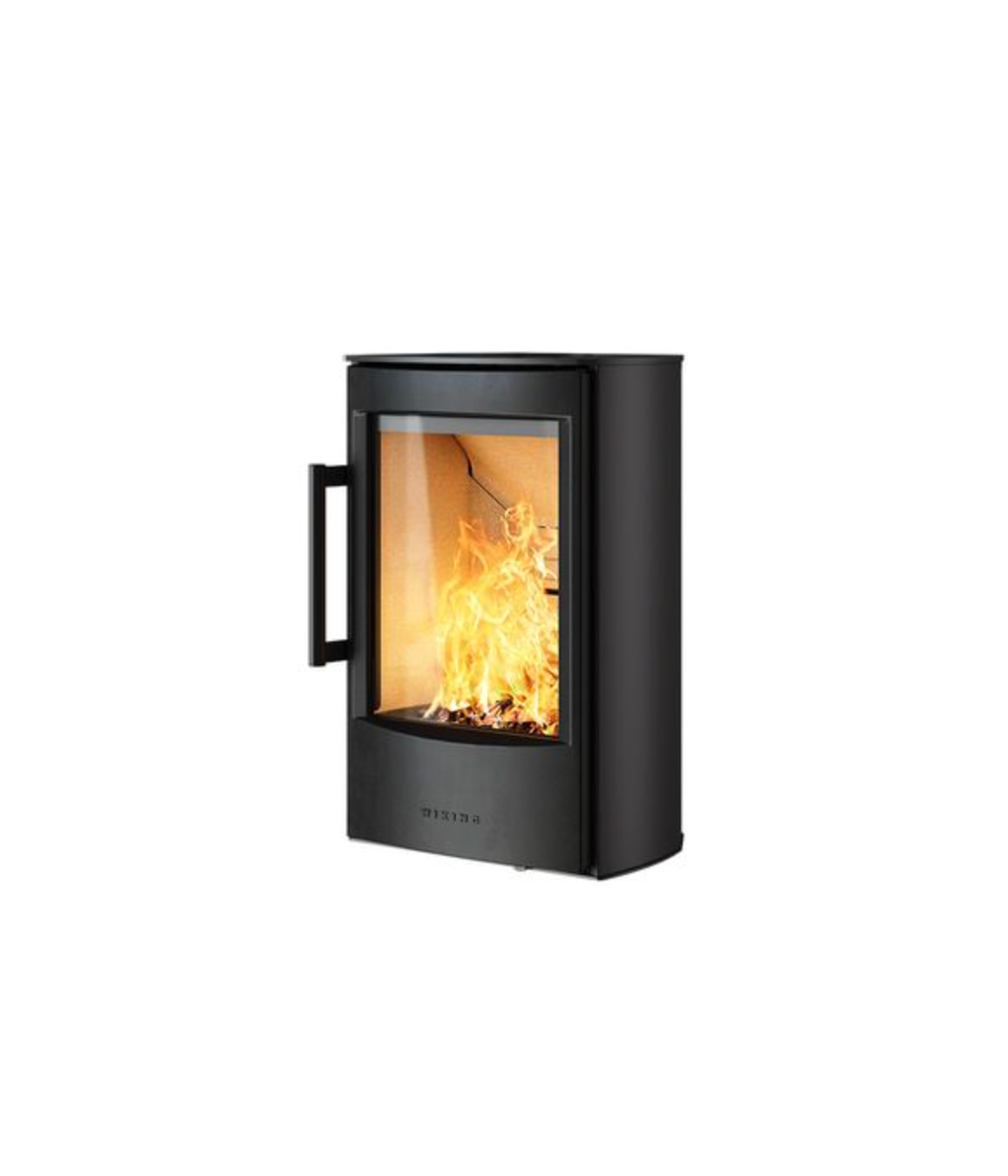

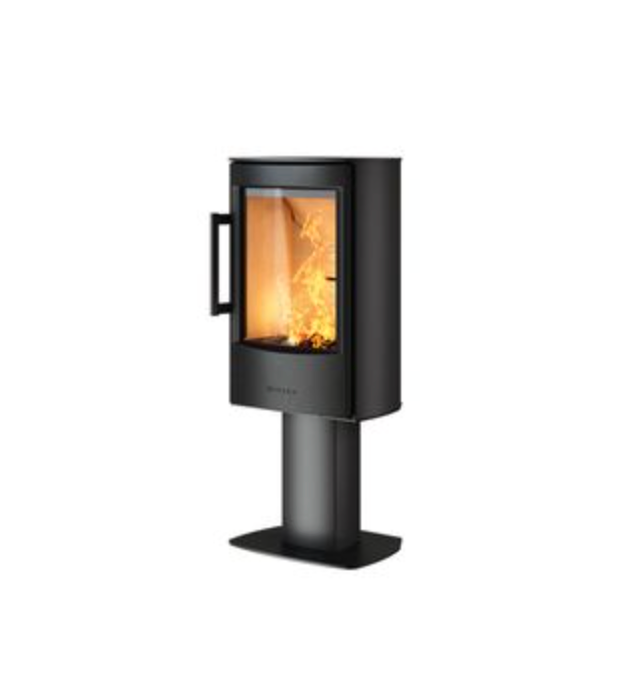

Wiking Miro 2

Wiking Miro 2

£1,985.00 GBP
£1,985.00 GBP
Sale Sold out
Tax included.

Combustion Air System
No oxygen, no fire. It’s that simple. That is why a constant flow of air to the wood-burning stove is needed to create clean and effective combustion in your HWAM.

WIKING® Automatic™
In a WIKING wood-burning stove, the regulation of air during lighting and re-stoking is managed automatically through the WIKING® Automatic™ device.

Please not: stone cladding, steel and glass floor plates available for some models. Please contact us for more information - 01869 222444 or info@oxfordshirestovesandinteriors.co.uk.



Technical data
Energy efficiency class WIKING® Autopilot™ - A
WIKING® Autopilot™ - Yes
Efficiency (%) - 75
Nominal heat output (kW) - 4.4
Smoke outlet (Ø) - 5"/6"
Chimney draught, recommended (Pa) - 12

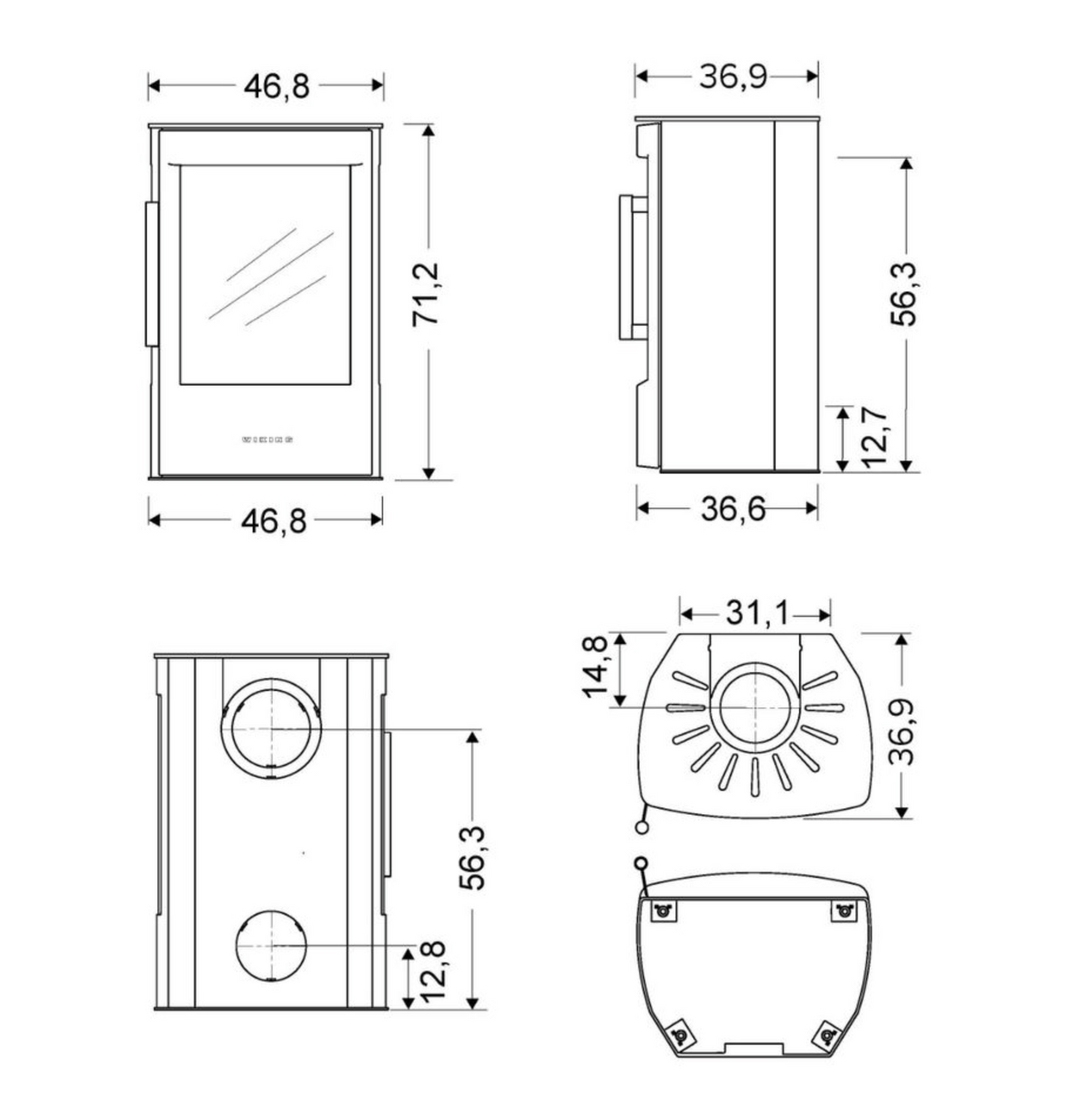

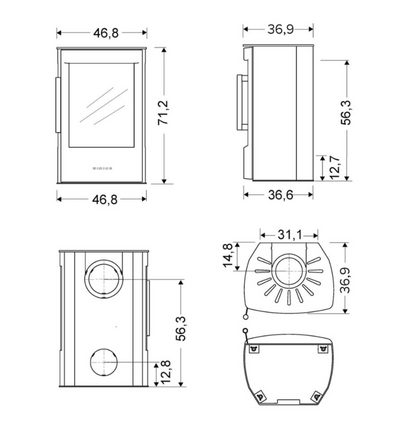

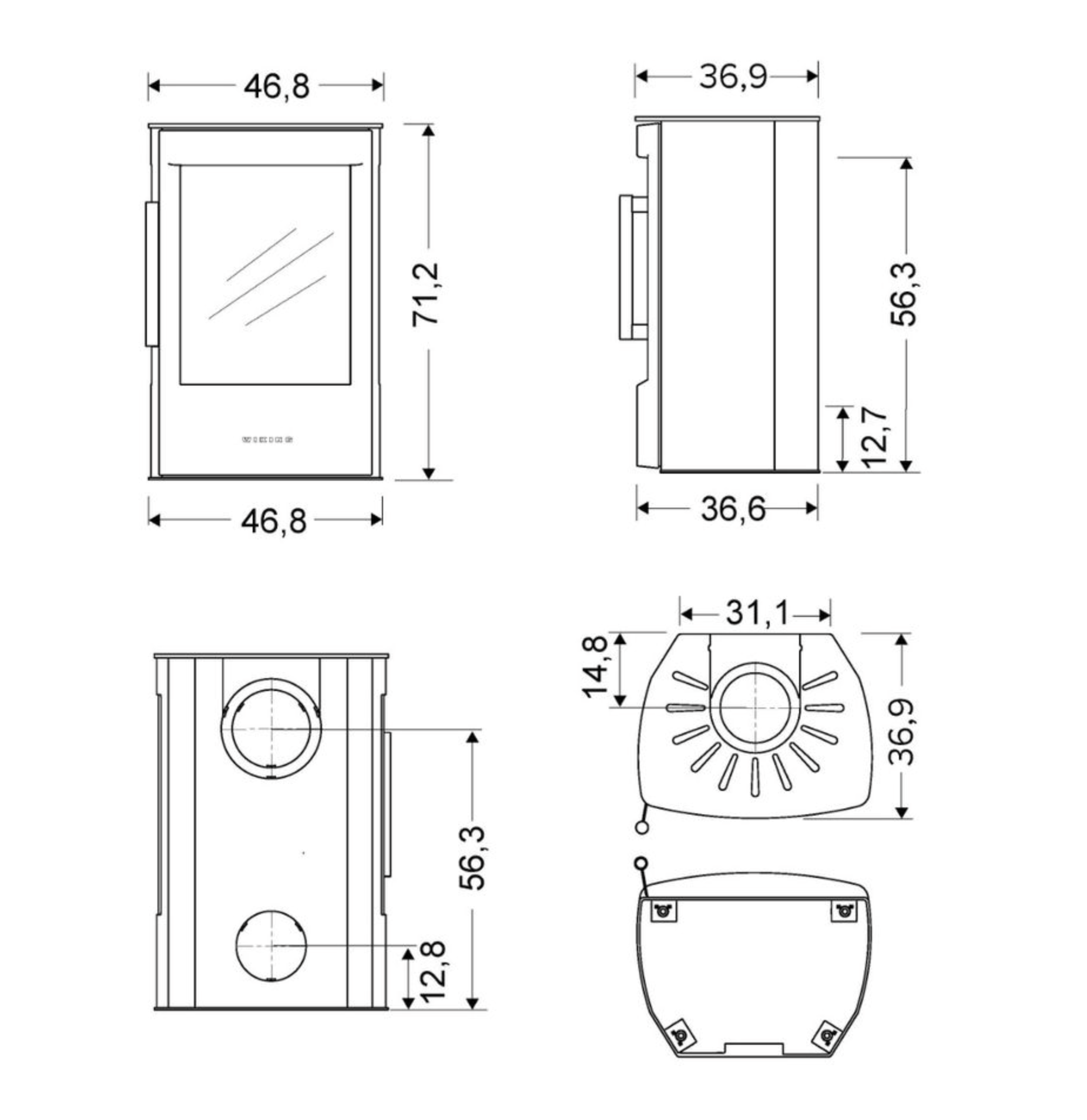

Product measurements (cm)
Height - 71.2
Width - 46.8
Depth - 36.9
Combustion chamber - 35/32
Weight (kg)
Steel cladding, c/m door 94
Connection measurements (cm)
Connection from the wall to centre of top outlet, wall mounted - 67
Fresh air kit
Combustion air system can be mounted, back (Ø 100 mm) - additional purchase - Yes
Combustion air system
Combustion system WIKING® Autopilot™
Distance to combustible materials (cm)
Mantel piece - 50
Floor 30*
* This distance requirement is met when the wood-burning stove is hung on the wall with the required distance below the wood-burning stove.
Ceiling 50
Distance to combustible materials, insulated flue gas pipe (cm)
Behind - 10
Side - 10
Sides, in front of the stove - 45
In front - 110
Furnishing in front - 110
Corner, 45° - 5
Distance to combustible materials, uninsulated flue gas pipe (cm)
Behind - 17.5
Side - 15
Sides, in front of the stove - 45
In front - 110
Furnishing in front - 110
Corner, 45° - 7.5
Approvals
EN 16510 Yes
EN 16510 type CA Yes
BImSchV Stufe 2 Yes
DEFRA Exempt Yes
ECODESIGN Compliant Yes
