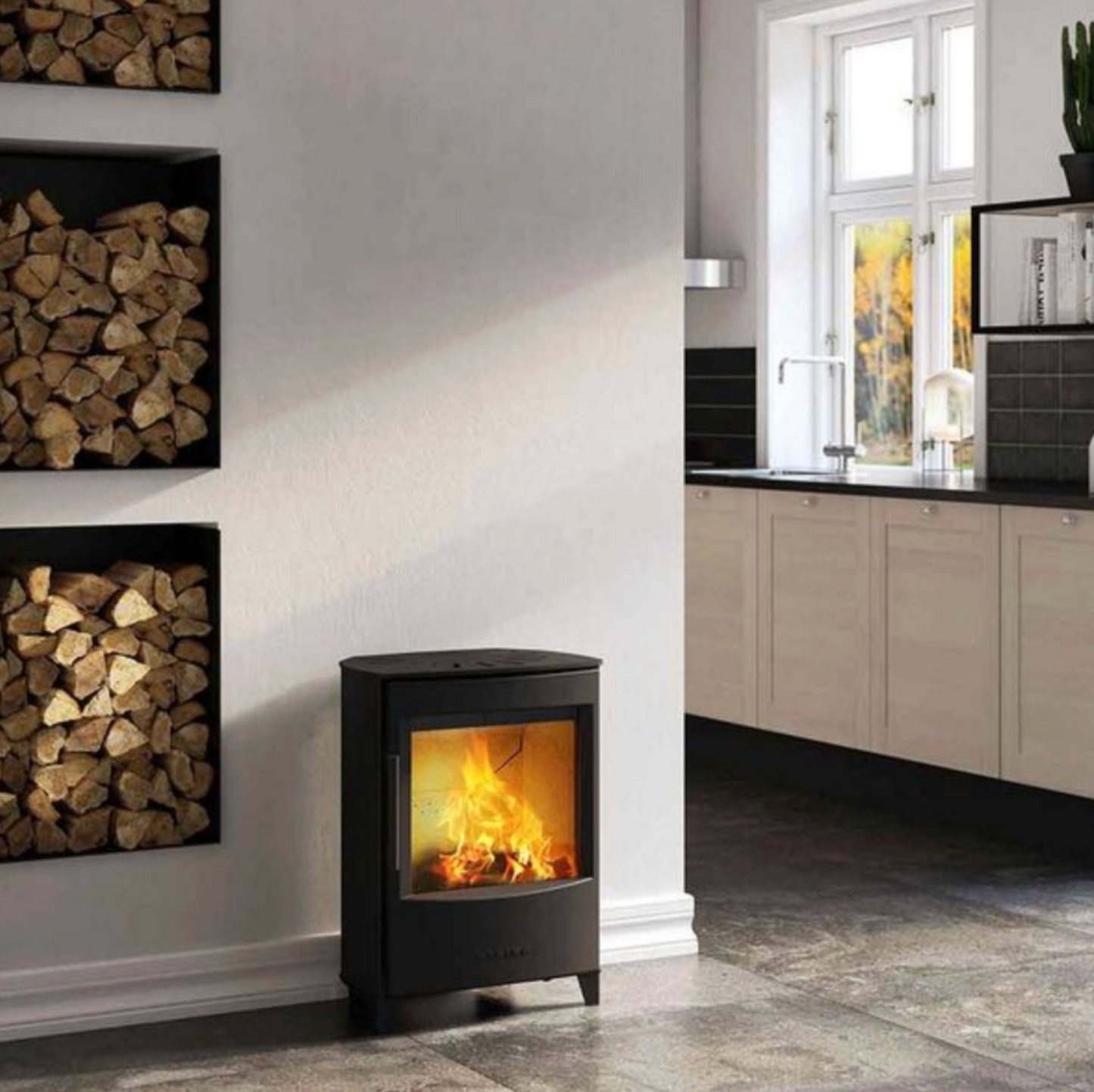

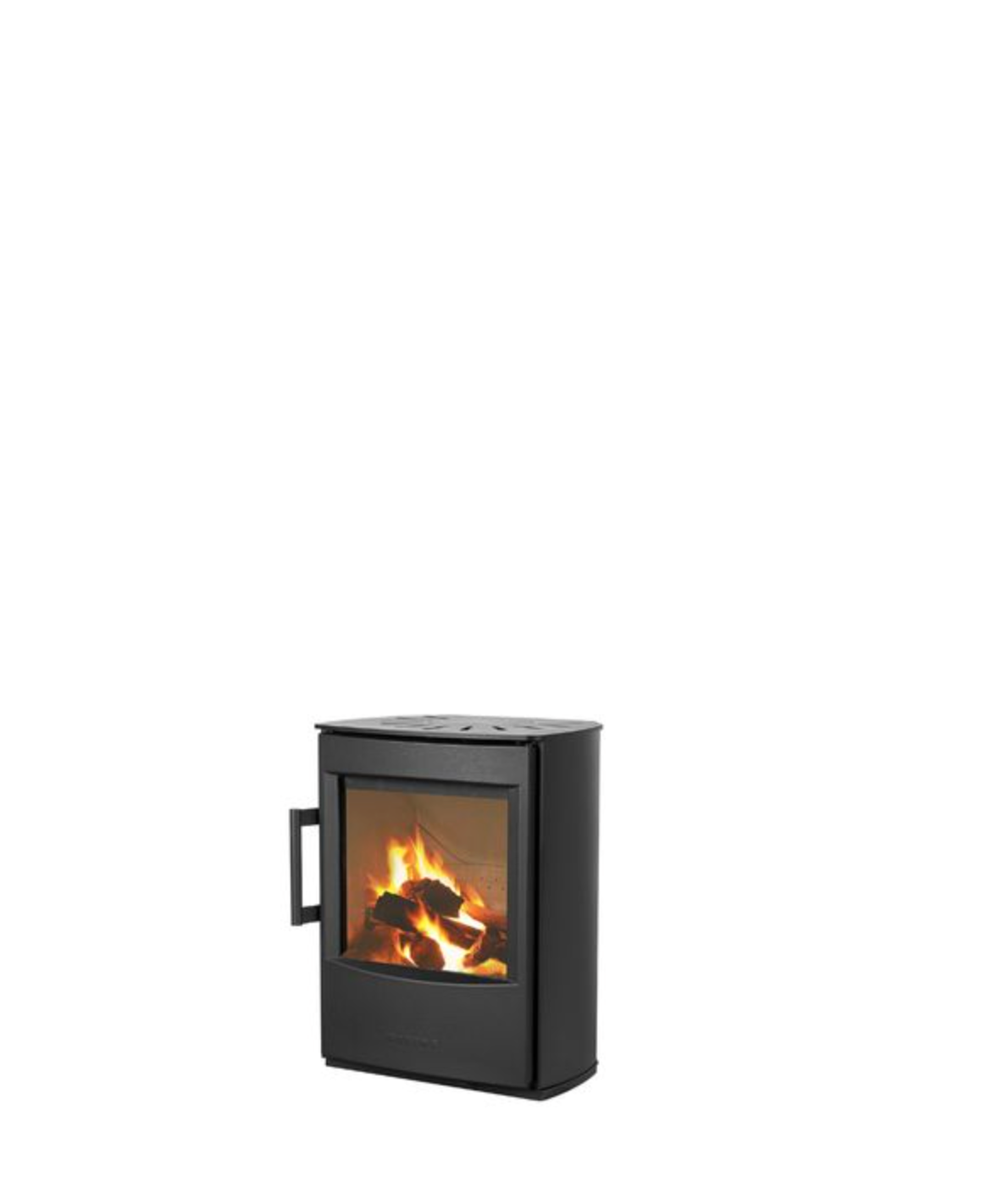

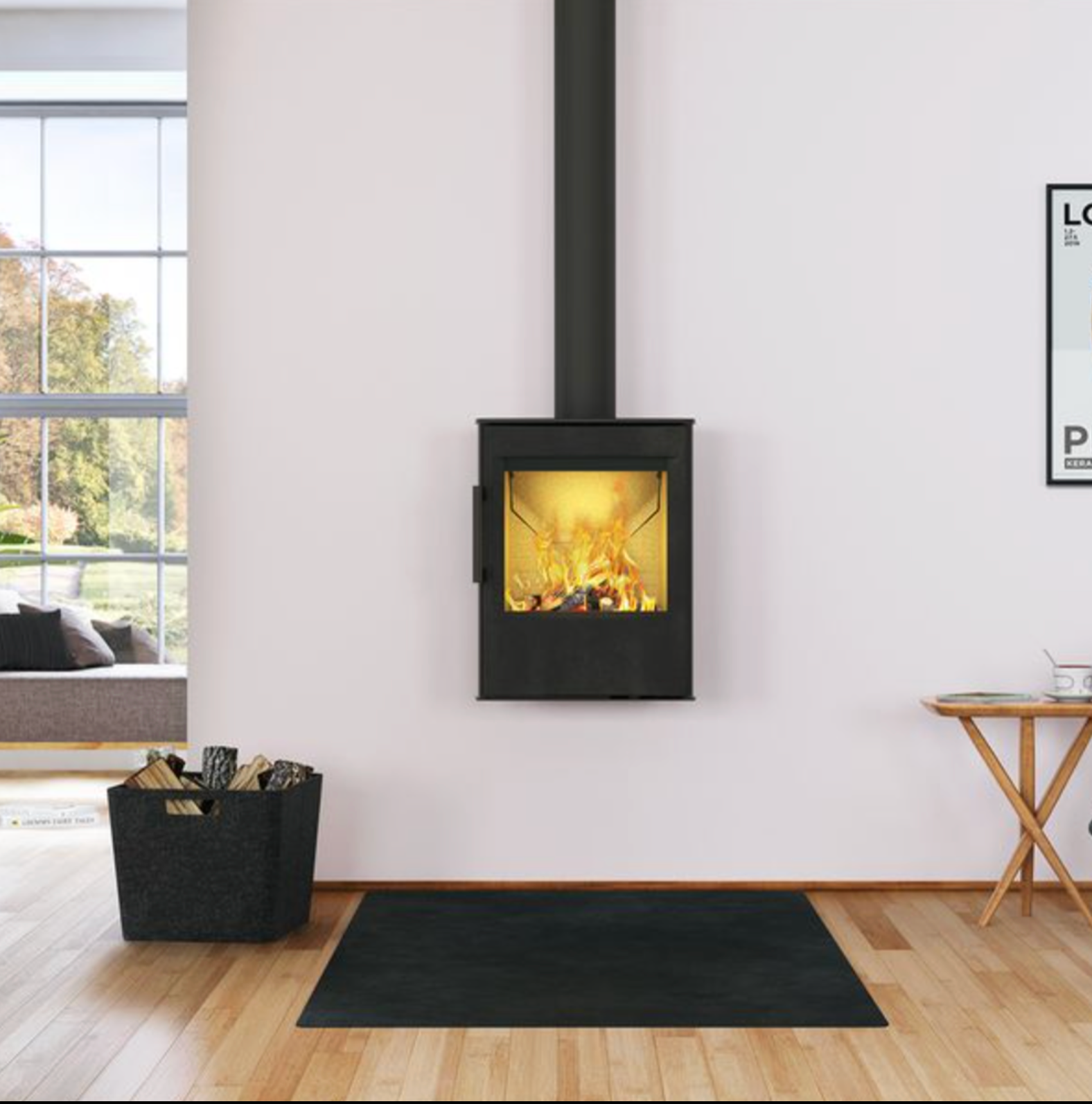

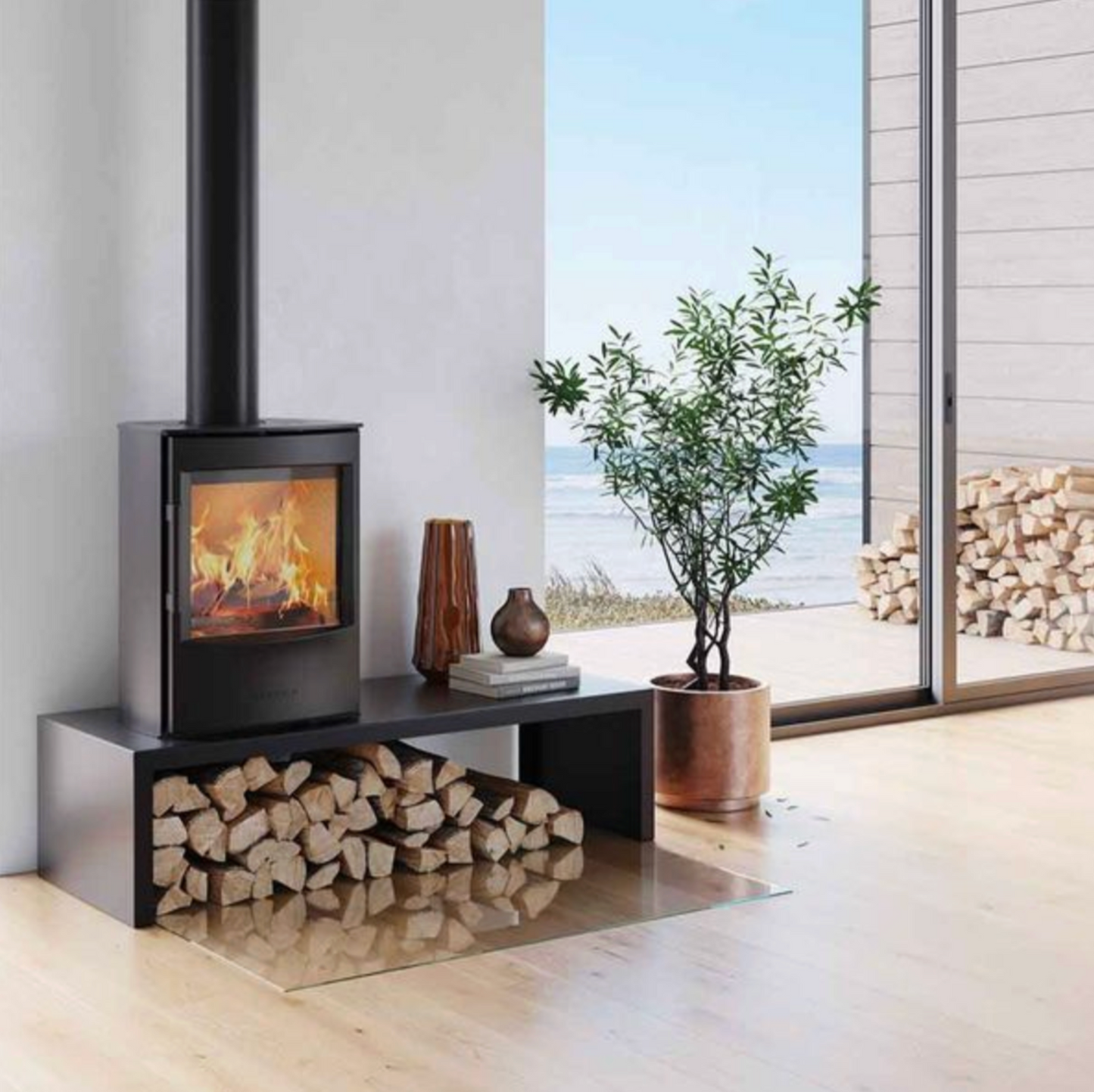

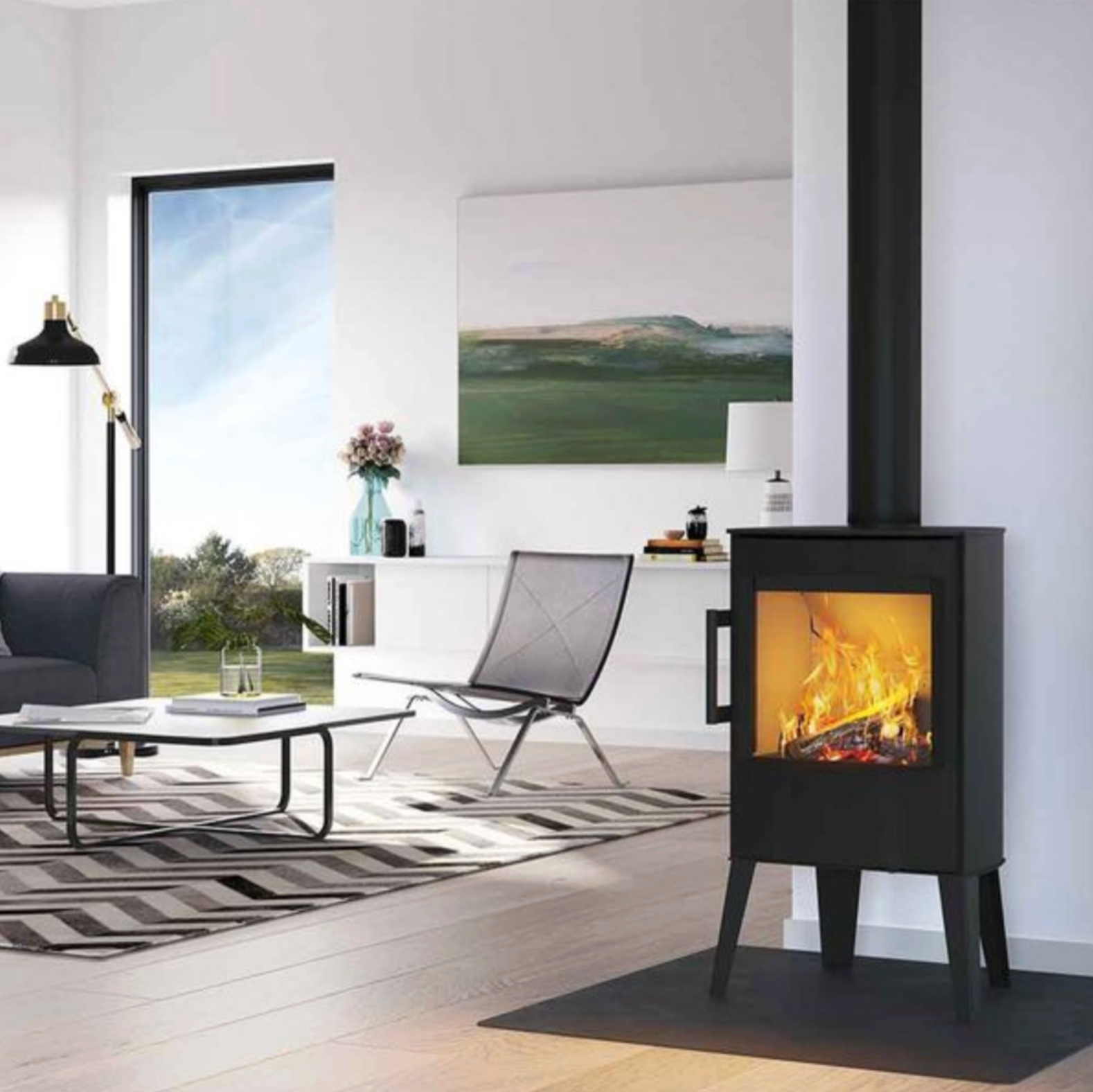

TheWiking Mini 2is a compact and efficient wood burning stove that’s perfect for small spaces. With its sleek Nordic design, it’s not just functional but also stylish.
The stove has a high-quality cast iron construction door and steel body and features an air-wash system that keeps the glass clean and clear. The stove is easy to use and maintain; you can adjust the heat output using the air control which actually works automatically to adjust the air combustion for slower and more efficient burning, and the ash pan makes cleaning up after use a breeze.
This eco-friendly stove is aDEFRA-approved log burner, meaning it’s suitable for use in smoke-controlled areas. The Wiking Mini 2 wood burning stove is both practical and aesthetically pleasing, making it a great addition to any home.
WIKING® Automatic™
In a WIKING wood-burning stove, the regulation of air during lighting and re-stoking is managed automatically through the WIKING® Automatic™ device.
Please not: stone cladding, steel and glass floor plates available for some models. Please contact us for more information - 01869 222444 or info@oxfordshirestovesandinteriors.co.uk.
Technical data
Energy efficiency class WIKING® Automatic™A +
WIKING® Automatic™ - Yes
Efficiency (%) - 82,0
Nominal heat output (kW) - 4.5
Smoke outlet (Ø) - 5"/6"
Chimney draught, recommended (Pa) - 12.0

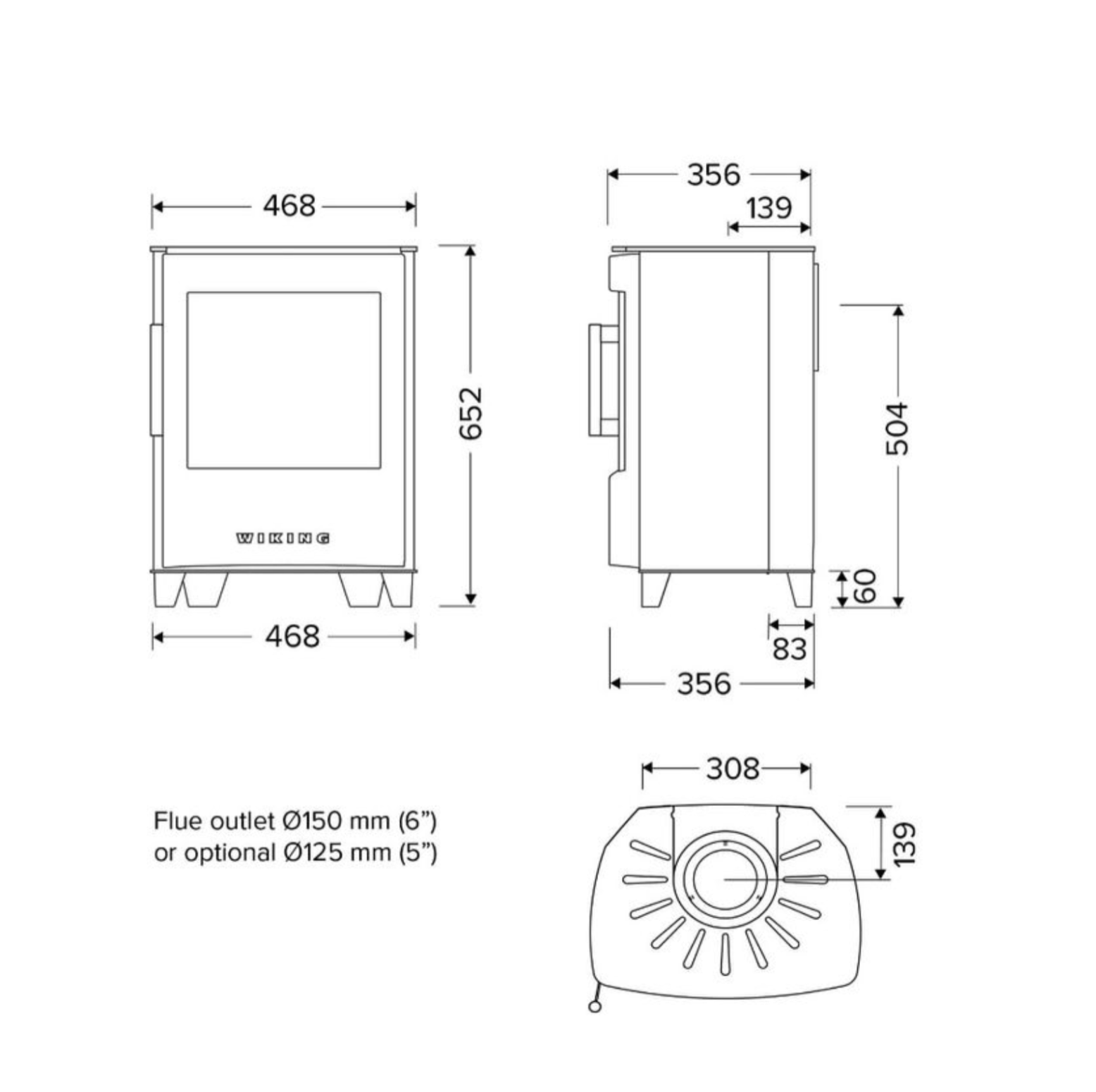

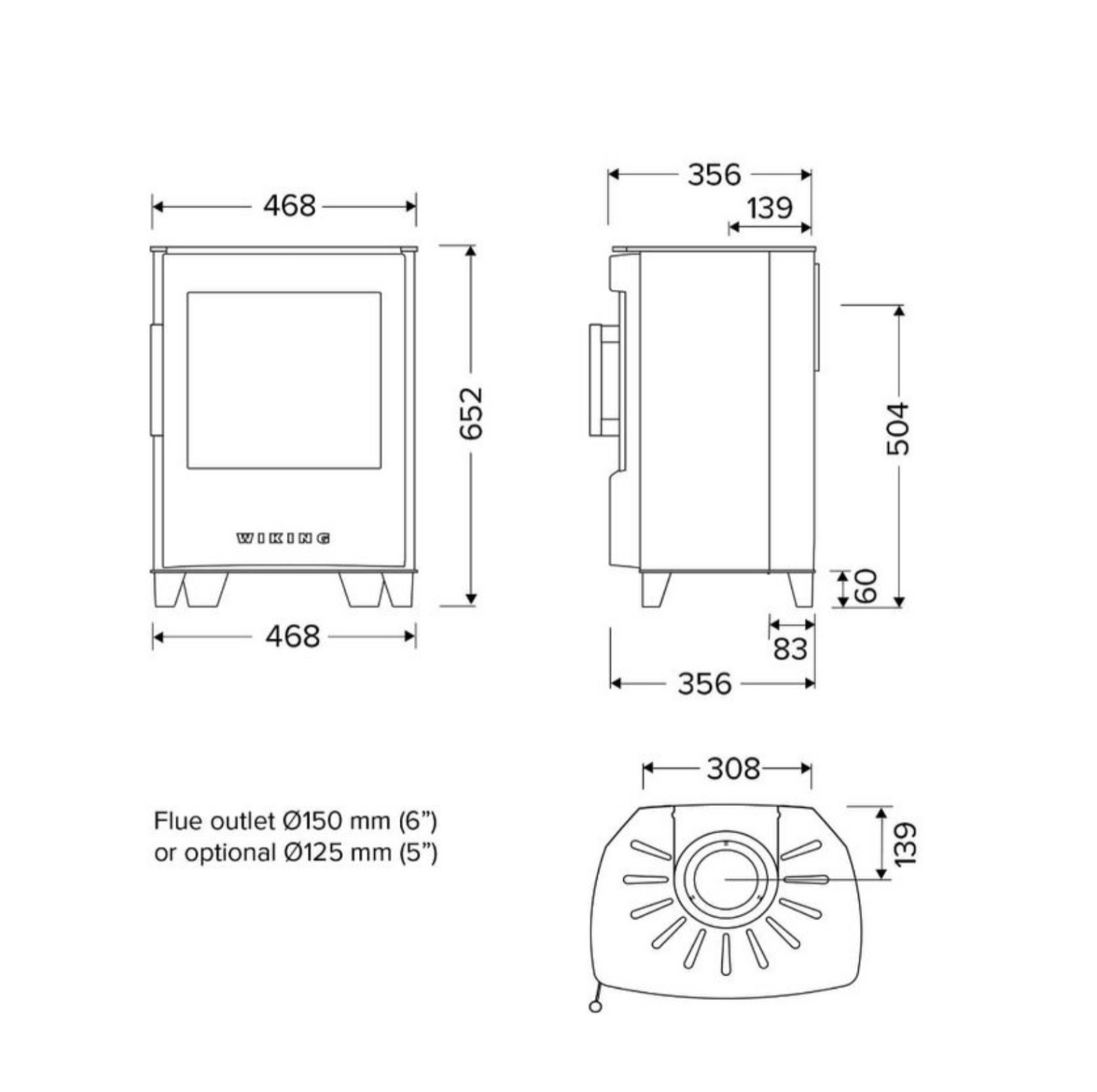

Product measurements (cm)
Height - 59,2
Width - 46,8
Depth - 35,6
Combustion chamber - 35.0/32.0
Weight (kg)
Steel cladding, c/m door - 71,0
Connection measurements (cm)
Connection from the wall to centre of top outlet, wall mounted - 55,0
Fresh air kit
Combustion air system can be mounted, back (Ø 100 mm) - additional purchase - Yes
Combustion air system can be mounted, bottom (Ø 100 mm) - additional purchase - Yes
Combustion air system
Combustion systemWIKING® Automatic™
Distance to combustible materials (cm)
Mantel piece - 45,0
Floor - 22.0*
* This distance requirement is met when the wood-burning stove is hung on the wall with the required distance below the wood-burning stove.
Ceiling - 75.0
Distance to combustible materials, insulated flue gas pipe (cm)
Behind - 7.5
Side - 32.5
Sides, in front of the stove - 32.5
In front - 100.0
Furnishing in front - 100.0

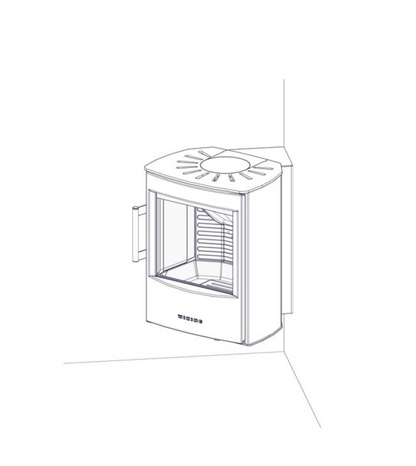

Corner 45° - 5.0
Distance to combustible materials, uninsulated flue gas pipe (cm)
