Wiking Maxi 2

Wiking Maxi 2

£2,235.00 GBP
£2,235.00 GBP
Sale Sold out
Tax included.

WIKING Maxi is an efficient wood-burning stove with a wide firing width. You get an wood-burning stove with different design options; from a wall-mounted model to one on high legs and different natural stone claddings to choose between.


Please not: stone cladding, steel and glass floor plates available for some models. Please contact us for more information - 01869 222444 or info@oxfordshirestovesandinteriors.co.uk.



Technical data
Energy efficiency class WIKING® Autopilot™ - A
WIKING® Autopilot™ - Yes
Efficiency (%) - 80
Nominal heat output (kW) - 6.6
Smoke outlet (Ø) - 5"/6"
Chimney draught, recommended (Pa) - 12

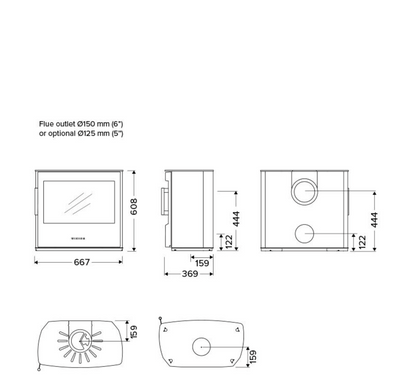

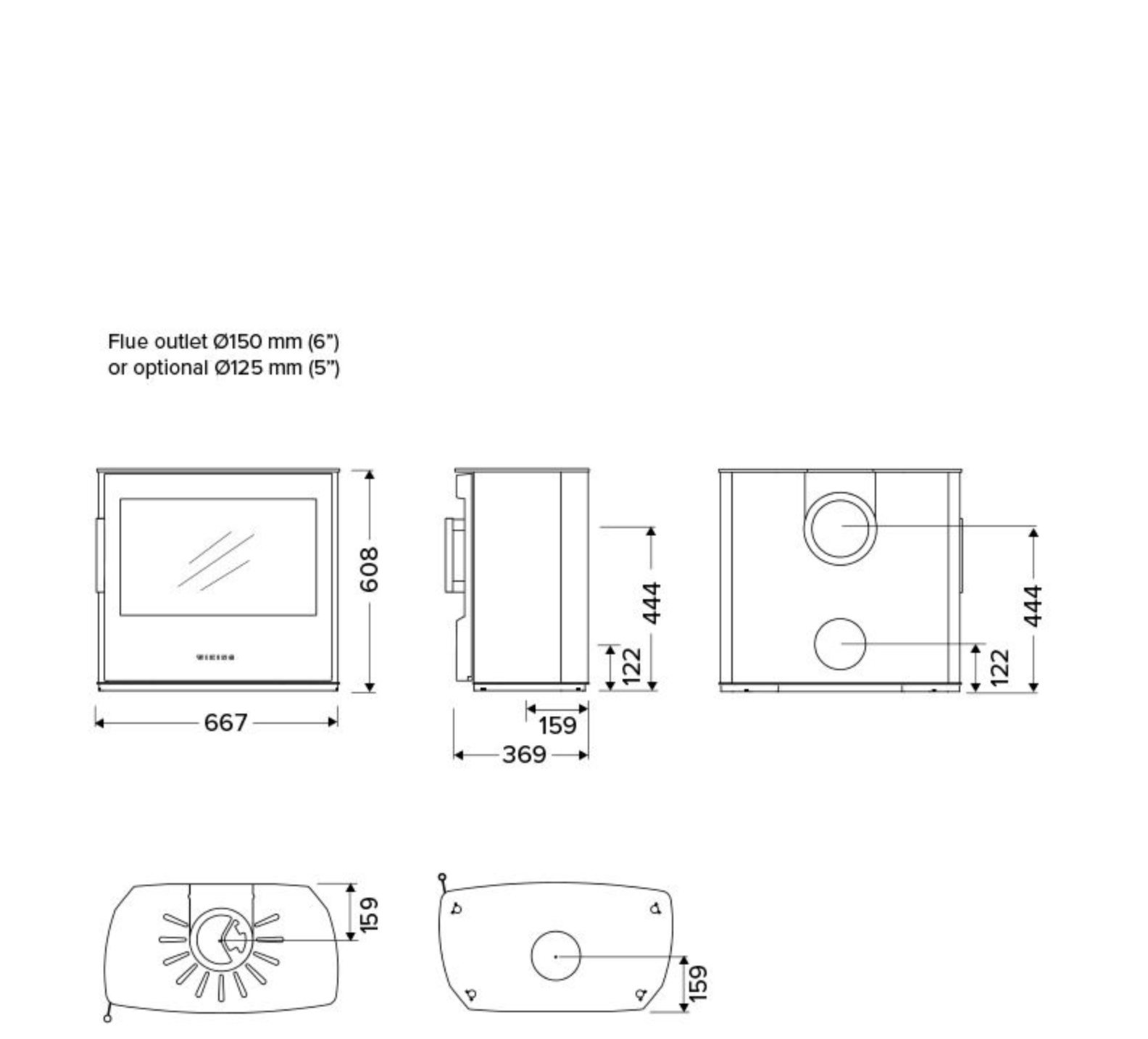

Product measurements (cm)
Height - 59.2
Width - 66.7
Depth - 36.9
Combustion chamber - 52.2 / 48.5

Weight (kg)
Steel cladding, c/m door - 113

Connection measurements (cm)
From floor, top - 52.6

Fresh air kit
Combustion air system can be mounted, back (Ø 100 mm) - additional purchase - Yes

Combustion air system
Combustion systemWIKING® Autopilot™

Distance to combustible materials (cm)
Mantel piece - 70
Floor - 30.0*
* This distance requirement is met when the wood-burning stove is hung on the wall with the required distance below the wood-burning stove.
Ceiling - 70/65

Distance to combustible materials, insulated flue gas pipe (cm)
Behind - 7.5
Side - 15
Sides, in front of the stove - 40
In front - 135
Furnishing in front - 135
Corner, 45° - 10

Distance to combustible materials, uninsulated flue gas pipe (cm)
Behind - 15
Side -15
Sides, in front of the stove - 45
In front - 135
Furnishing in front - 135
Corner, 45° - 7.5

Approvals
EN 16510 - Yes
EN 16510 type CA - Yes
BImSchV Stufe 2 - Yes
ECODESIGN Compliant - Yes
