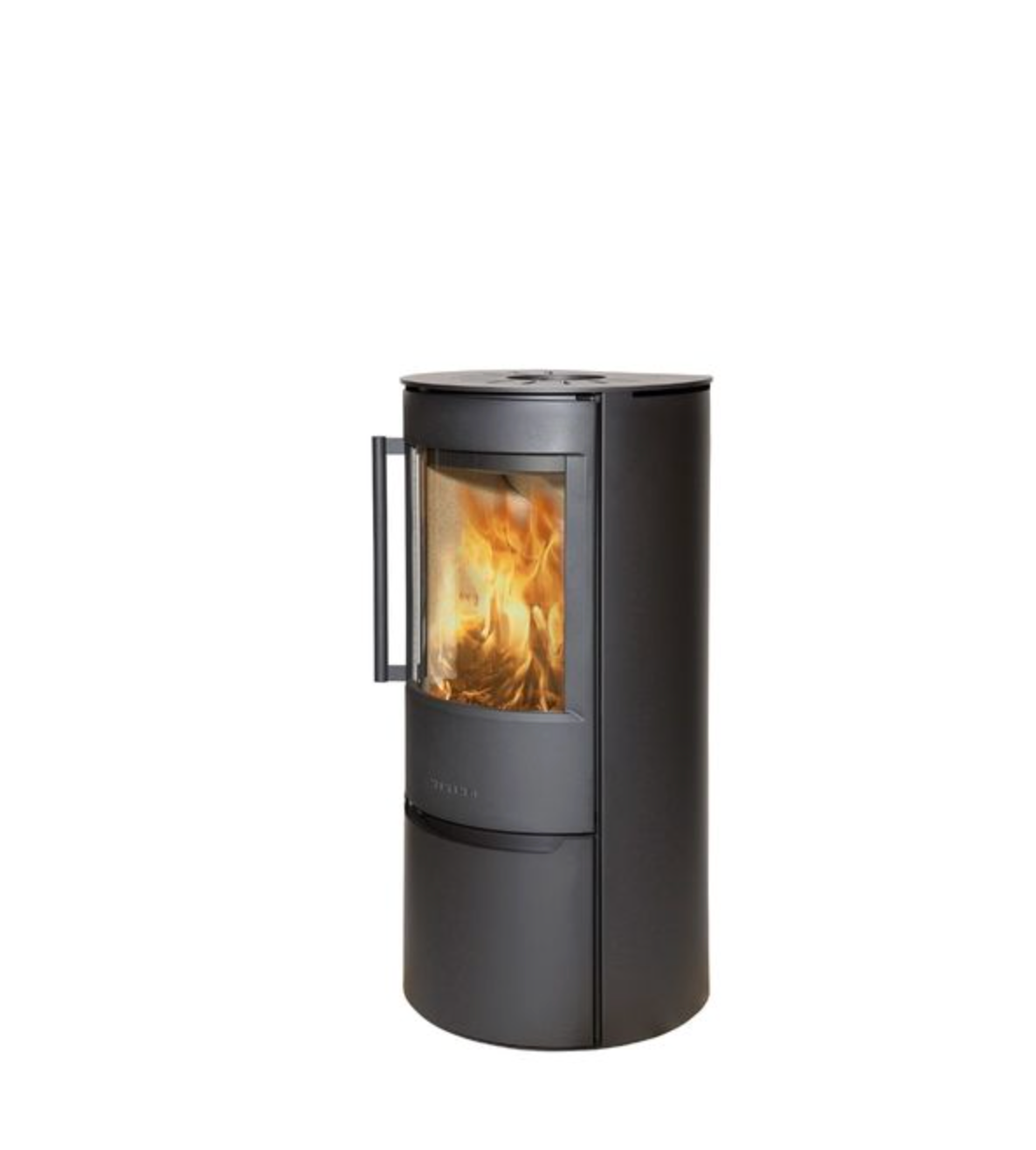

Wiking Luma 4

Wiking Luma 4

£2,595.00 GBP
£2,595.00 GBP
Sale Sold out
Tax included.

Combustion Air System
No oxygen, no fire. It’s that simple. That is why a constant flow of air to the wood-burning stove is needed to create clean and effective combustion in your HWAM.

WIKING® Automatic™
In a WIKING wood-burning stove, the regulation of air during lighting and re-stoking is managed automatically through the WIKING® Automatic™ device.

Please not: stone cladding, steel and glass floor plates available for some models. Please contact us for more information - 01869 222444 or info@oxfordshirestovesandinteriors.co.uk.



Technical data
Energy efficiency class WIKING® Automatic™ - A +
WIKING® Automatic™ - Yes
Efficiency (%) - 81
Nominal heat output (kW) - 7.0
Smoke outlet (Ø) - 6"
Chimney draught, recommended (Pa) - 12.0

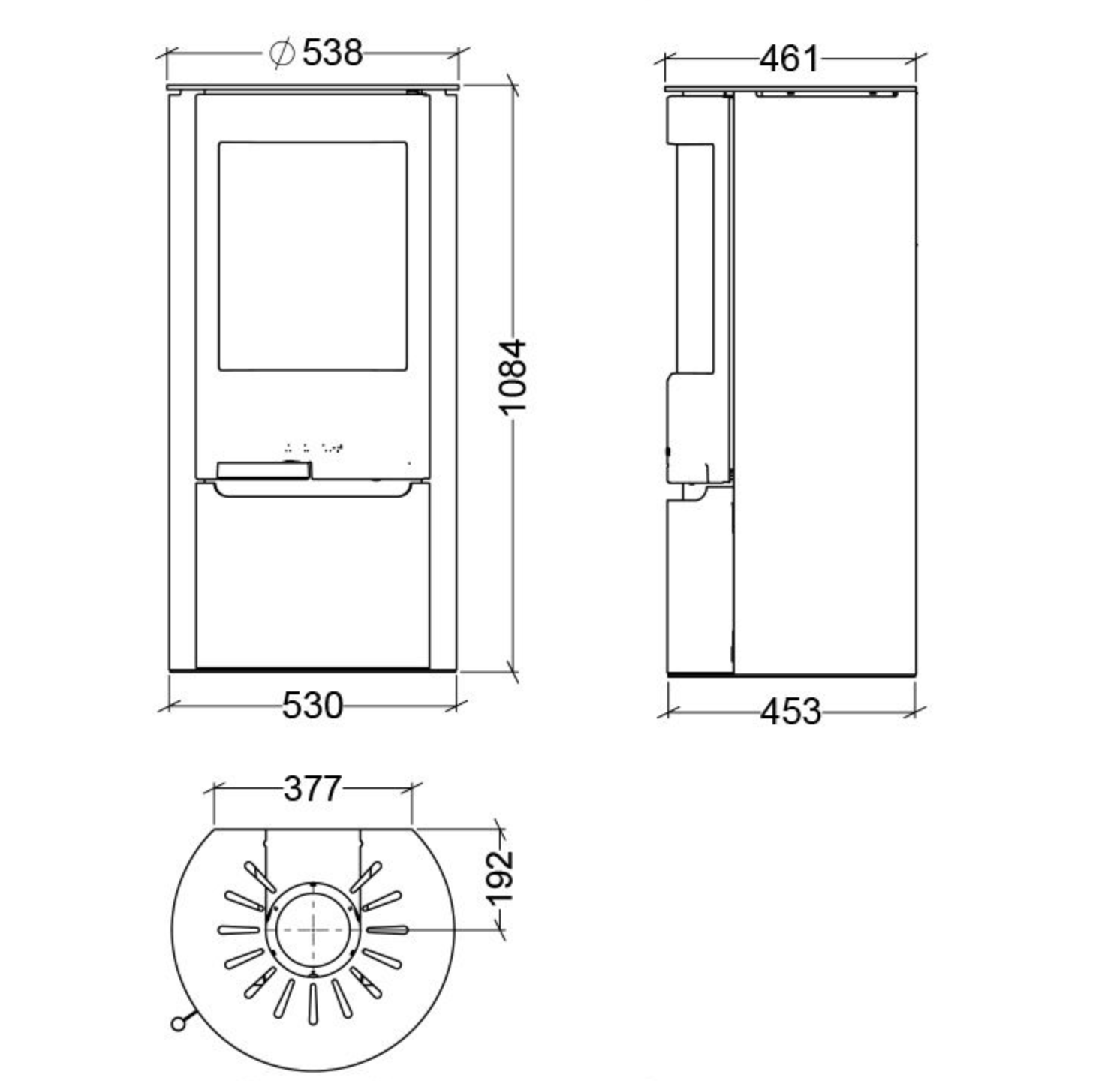

Product measurements (cm)
Height - 108.4
Width - 53.8
Depth - 46
Combustion chamber - 36.5
Weight (kg)
Steel cladding, c/m door - 117
Connection measurements (cm)
From floor, top - 104.3
Fresh air kit
Combustion air system can be mounted, back (Ø 100 mm) - additional purchase - Yes
Combustion air system can be mounted, bottom (Ø 100 mm) - additional purchase - Yes
Combustion air system
Combustion system - WIKING® Automatic™
Distance to combustible materials (cm)
Mantel piece - 55
Floor - 0
Ceiling - 55
Distance to combustible materials, insulated flue gas pipe (cm)
Behind - 12.5
Side - 45
Sides, in front of the stove - 62.5
In front - 125
Furnishing in front - 125
Corner, 45° - 7.5
Distance to combustible materials, uninsulated flue gas pipe (cm)
Behind - 25
Side - 45
Sides, in front of the stove - 62.5
In front - 125
Furnishing in front - 125
Corner, 45° - 16.5
Approvals
EN 16510 - Yes
EN 16510 type CA - Yes
BImSchV Stufe 2 - Yes
DEFRA Exempt - Yes
ECODESIGN Compliant - Yes
