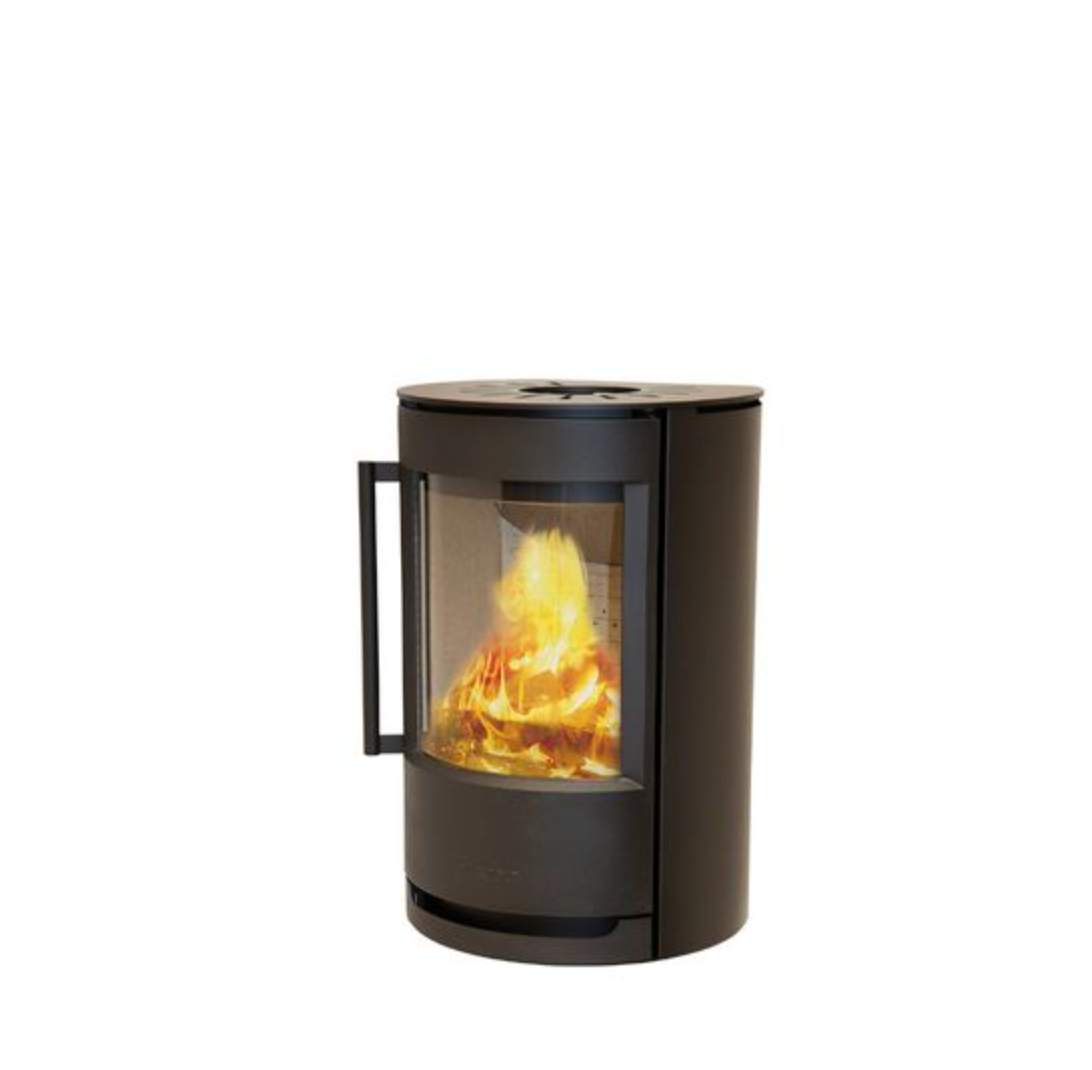

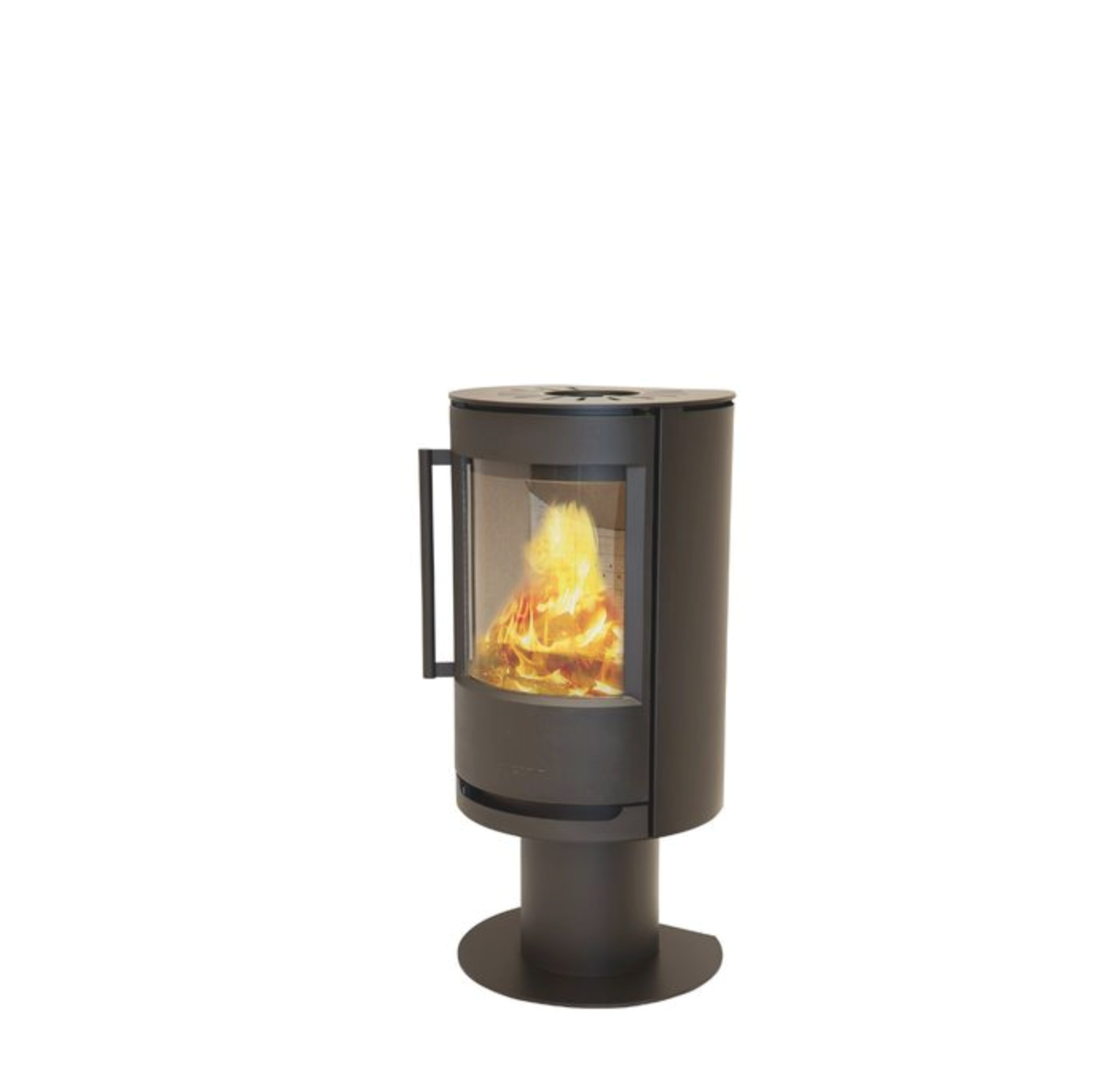

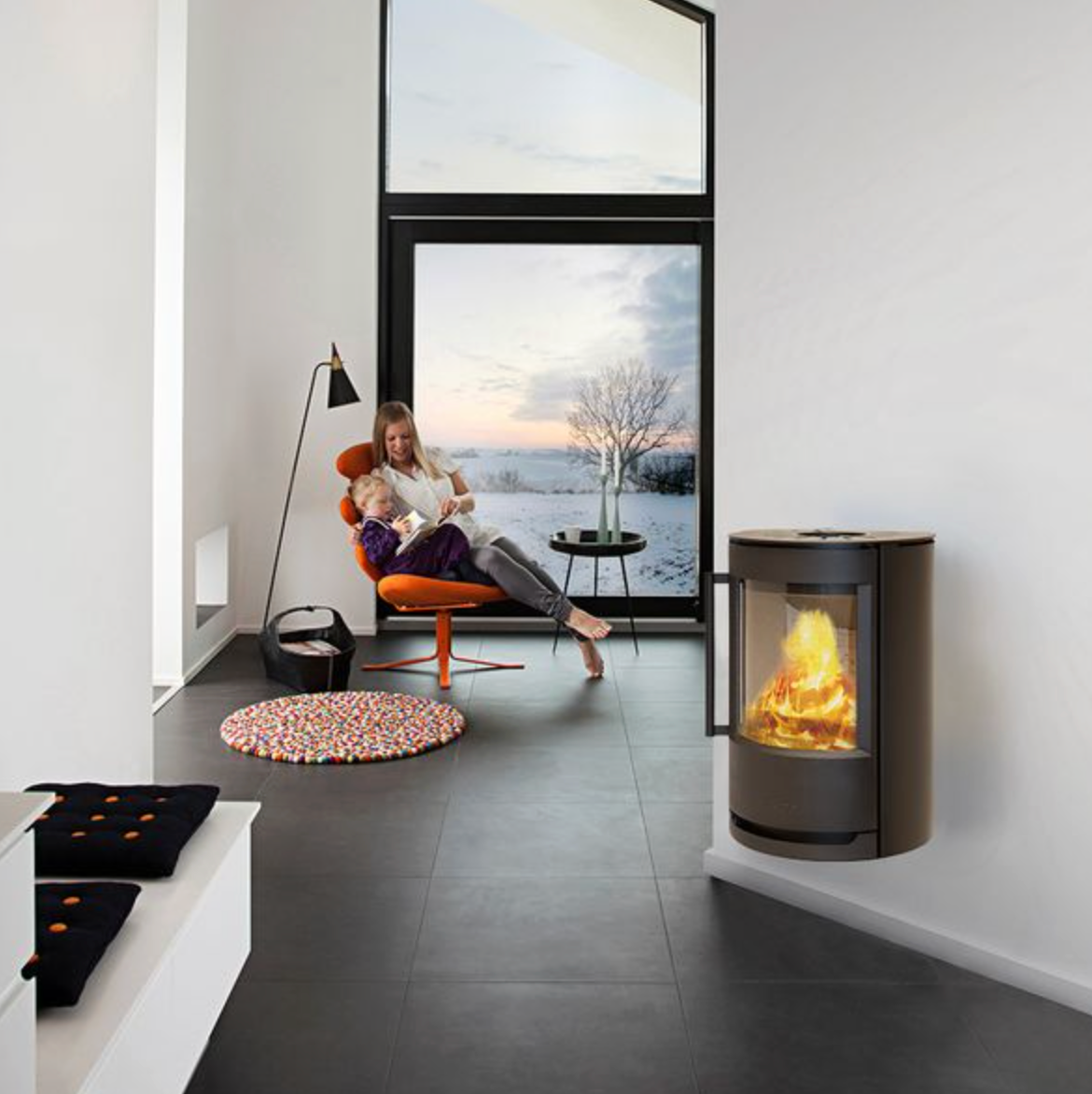

Wiking Luma 2

Wiking Luma 2

£2,495.00 GBP
£2,495.00 GBP
Sale Sold out
Tax included.

Combustion Air System
No oxygen, no fire. It’s that simple. That is why a constant flow of air to the wood-burning stove is needed to create clean and effective combustion in your HWAM.

WIKING® Automatic™
In a WIKING wood-burning stove, the regulation of air during lighting and re-stoking is managed automatically through the WIKING® Automatic™ device.

Please not: stone cladding, steel and glass floor plates available for some models. Please contact us for more information - 01869 222444 or info@oxfordshirestovesandinteriors.co.uk.



Technical data
Energy efficiency class WIKING® Automatic™. - A +
WIKING® Automatic™ - Yes
Efficiency (%) - 81
Nominal heat output (kW) - 7
Smoke outlet (Ø) - 6"
Chimney draught, recommended (Pa) -12

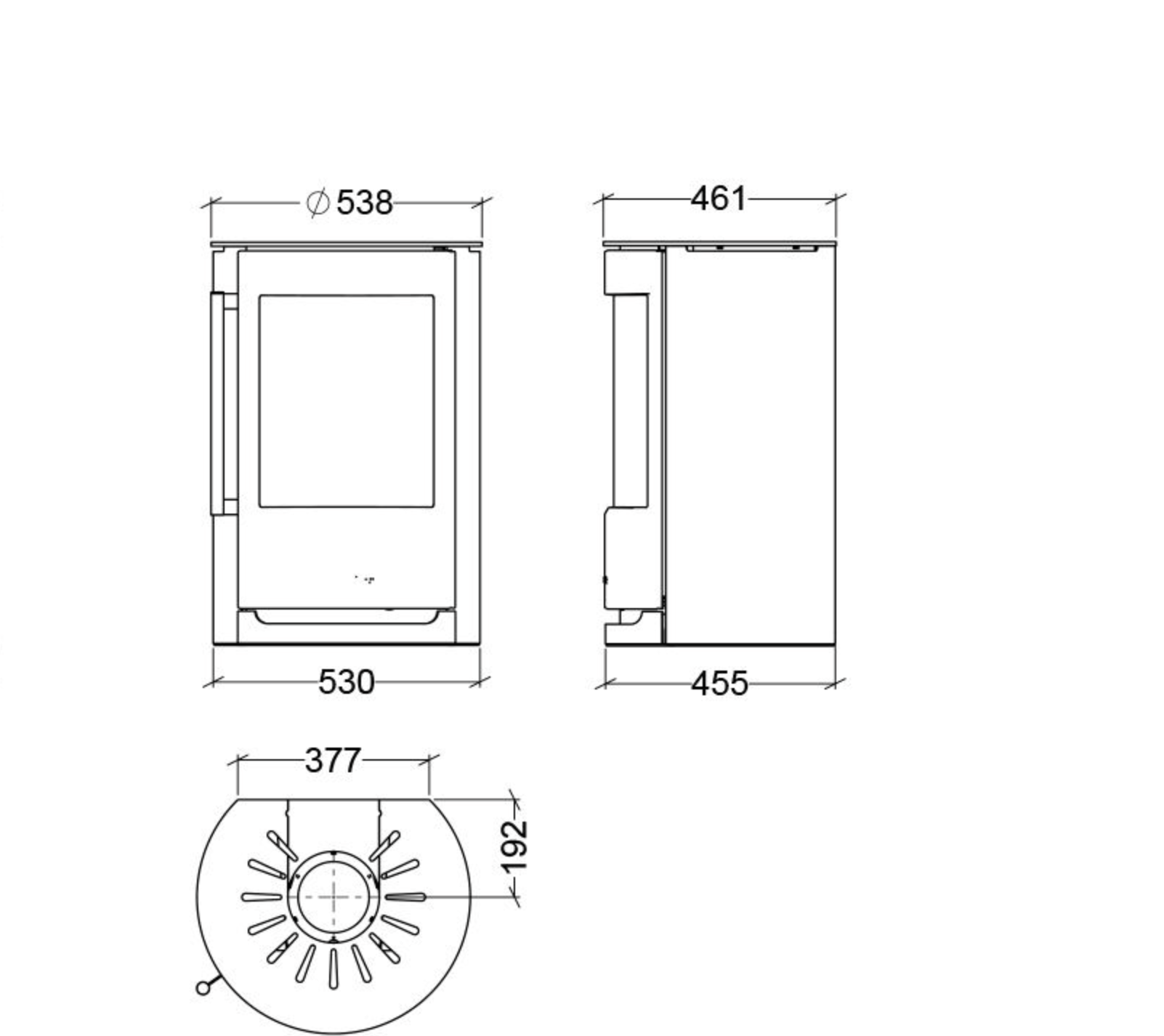

Product measurements (cm)
Height - 80.1
Width - 53.8
Depth - 46
Combustion chamber - 36.5

Weight (kg)
Steel cladding, c/m door - 114

Connection measurements (cm)
Connection from the wall to centre of top outlet, wall mounted - 76,2

Fresh air kit
Combustion air system can be mounted, back (Ø 100 mm) - additional purchase - Yes
Combustion air system can be mounted, bottom (Ø 100 mm) - additional purchase - Yes

Combustion air system
Combustion systemWIKING® Automatic™

Distance to combustible materials (cm)
Mantel piece - 55
Floor 29*
* This distance requirement is met when the wood-burning stove is hung on the wall with the required distance below the wood-burning stove.
Ceiling - 60

Distance to combustible materials, insulated flue gas pipe (cm)
Behind - 12.5
Side - 45
Sides, in front of the stove - 62.5
In front - 125
Furnishing in front - 125
Corner, 45° - 7.5

Distance to combustible materials, uninsulated flue gas pipe (cm)
Behind - 25
Side - 45
Sides, in front of the stove - 62.5
In front - 125
Furnishing in front - 125
Corner, 45° - 16.5

Approvals
EN 16510 - Yes
EN 16510 type CA -Yes
BImSchV Stufe 2 - Yes
DEFRA Exempt - Yes
ECODESIGN Compliant - Yes
