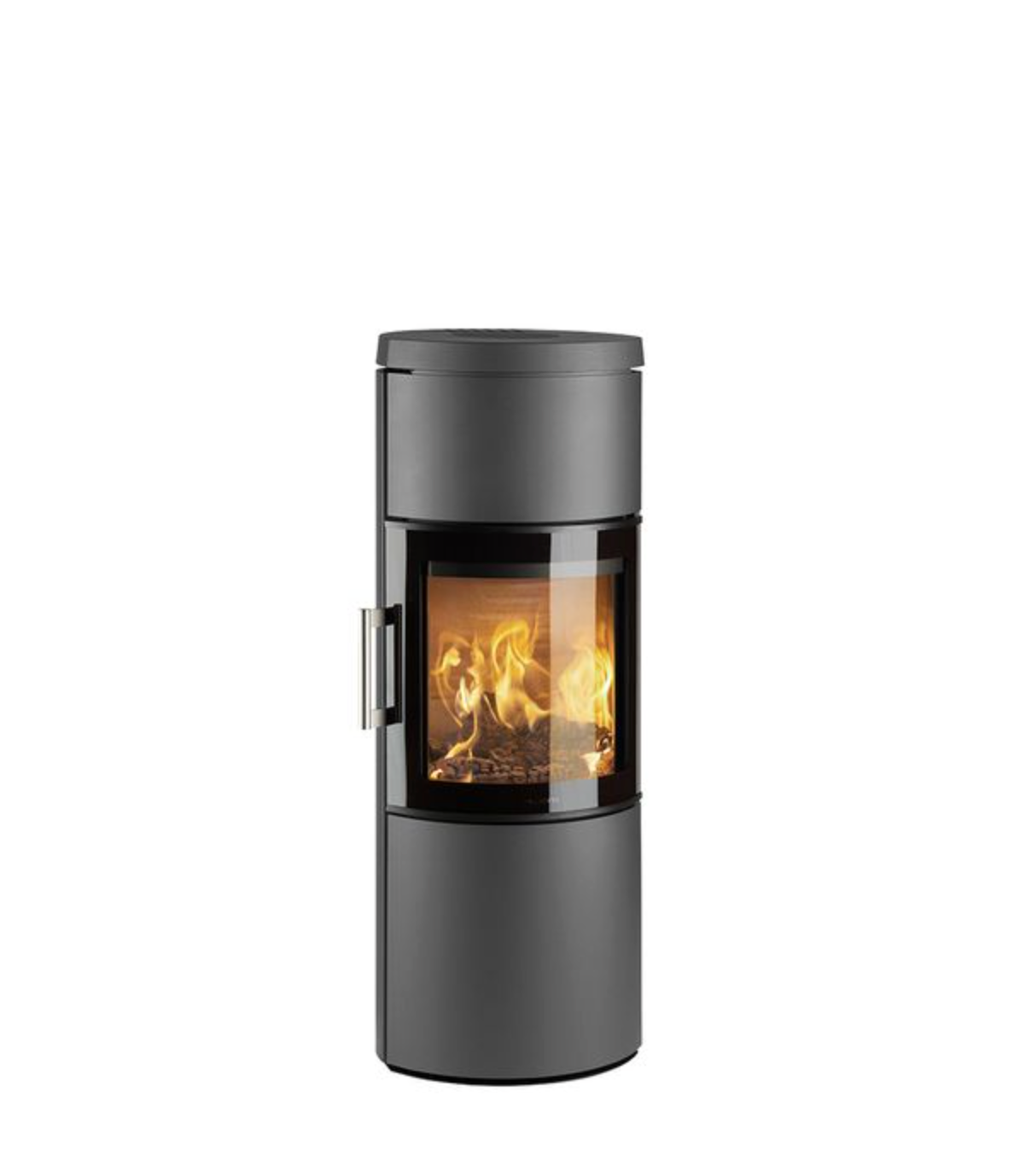

Hwam 3130m

Hwam 3130m

£2,945.00 GBP
£2,945.00 GBP
Sale Sold out
Tax included.

The curved glass in the door of the stove invites the family to enjoy the view of the flames from many angles in the room

The elliptical shape gives HWAM 3130 an attractive, light expression. Form and finish throughout make it possible to install the stove in a corner, on a straight wall and even in the centre of the room.

HWAM® SmartControl™ is available as internal fitting in this HWAM wood-burning stove.

HWAM® SmartControl™
With HWAM® SmartControl™ you need not worry about how to achieve the optimum and most eco-friendly combustion — the electronic control will take care of this.

HWAM® Autopilot™
A wood-burning stove with HWAM® Autopilot ™ ensures excellent combustion – for the benefit of the environment and your firewood consumption - without any manual regulation of the air supply.

Combustion Air System
No oxygen, no fire. It’s that simple. That is why a constant flow of air to the wood-burning stove is needed to create clean and effective combustion in your HWAM.

Convection
All HWAM and WIKING wood-burning stoves are convection stoves. This means that the wood-burning stove quickly emits heat after lighting.

Technical data
Energy efficiency class HWAM® Autopilot™ - A
Energy efficiency class HWAM® SmartControl™ - A +
HWAM® Autopilot™ - Yes
HWAM® SmartControl™ - Yes
Efficiency, HWAM® Autopilot™ (%) - 79.0
Efficiency, HWAM® SmartControl™ (%) - 81.0
Nominal heat output, HWAM® Autopilot™ (kW) - 4.8
Nominal heat output, HWAM® SmartControl™ (kW) - 4.5
Smoke outlet (Ø) - 5"/6"
Chimney draught, recommended, HWAM® Autopilot™ (Pa) - 12.0
Chimney draught, recommended, HWAM® SmartCntrol™ (Pa) - 11.0

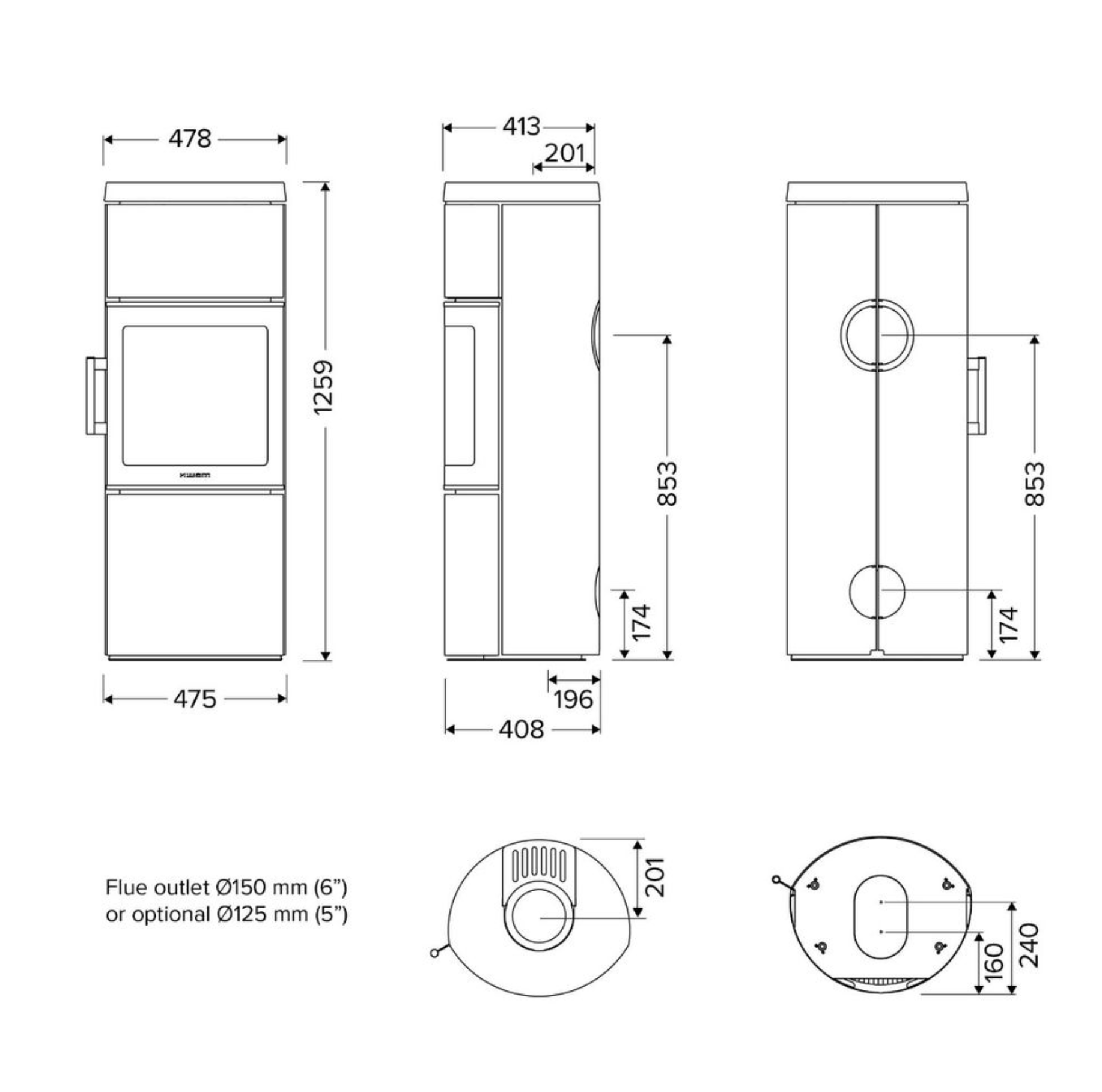

Product measurements (cm)
Height - 126.0
Width - 47.5
Depth - 41.3
Combustion chamber - 33.0

Weight (kg)
Steel cladding, c/m door - 113.0
Heat storage stones - 32.0

Connection measurements (cm)
From floor with Autopilot™, top - 94.8
From floor with SmartControl™, top - 97.5

Fresh air kit
Combustion air system can be mounted, back (Ø 100 mm) - additional purchase - Yes
Combustion air system can be mounted, bottom (Ø 100 mm) - additional purchase - Yes

Distance to combustible materials (cm)
Mantel piece - 45.0
Floo - r0.0

Distance to combustible materials Autopilot™ - insulated flue gas pipe (cm)
Behind - 7.5
Side - 22.0
Sides, in front of the stove - 45.0
In front - 105
Furnishing in front - 105
Corner, 45° - 10

Distance to combustible materials Autopilot™ - uninsulated flue gas pipe (cm)
Behind - 12.5
Side - 25.5
Sides, in front of the stove - 45
In front - 105
Furnishing in front - 105
Corner, 45° - 12.5

Distance to combustible materials SmartControl™ - insulated flue gas pipe (cm)
Behind - 7.5
Side - 19.5
Sides, in front of the stove - 40
In front - 100
Furnishing in front - 100
Corner, 45° - 10

Distance to combustible materials SmartControl™ - uninsulated flue gas pipe (cm)
1: Behind - 10
Side - 19.5
Sides, in front of the stove - 40
In front - 100
Furnishing in front - 100
Corner, 45° - 10

Approvals
EN 16510 - Yes
BImSchV Stufe 2 - Yes
Classificazione - 4 stelle
ECODESIGN Compliant - Yes
HETAS - Yes
