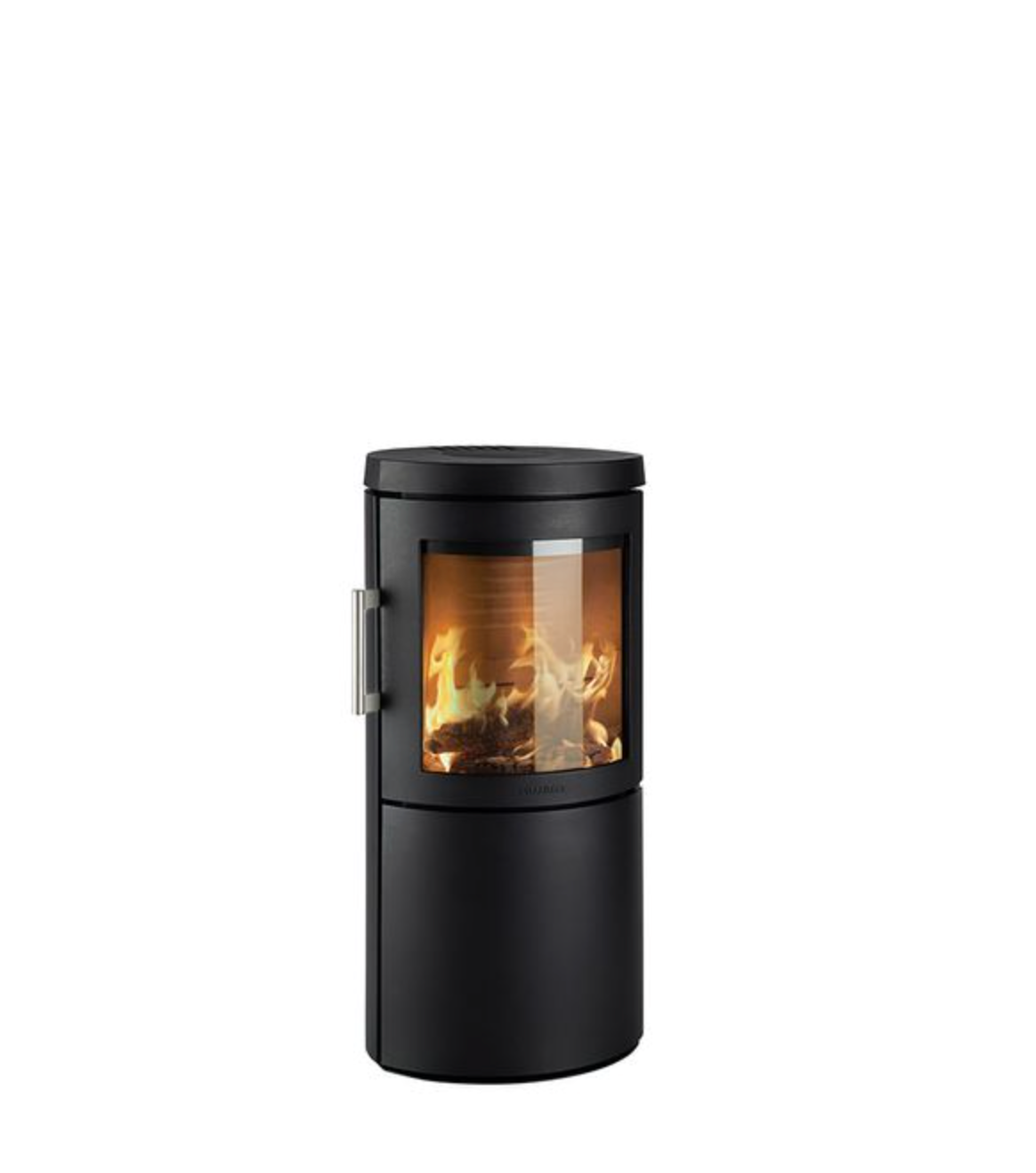

Hwam 3120c

Hwam 3120c

£2,495.00 GBP
£2,495.00 GBP
Sale Sold out
Tax included.

Give in to the fascination of the dancing flames from HWAM 3120c. The curved glass in the door of the stove invites the family to enjoy the view of the flames from many angles in the room.

The elliptical shape gives HWAM 3120c an attractive, light expression. Form and finish throughout make it possible to install the stove in a corner, on a straight wall and even in the centre of the room.

HWAM® SmartControl™
With HWAM® SmartControl™ you need not worry about how to achieve the optimum and most eco-friendly combustion — the electronic control will take care of this.
HWAM® Autopilot™
A wood-burning stove with HWAM® Autopilot ™ ensures excellent combustion – for the benefit of the environment and your firewood consumption - without any manual regulation of the air supply.

Combustion Air System
No oxygen, no fire. It’s that simple. That is why a constant flow of air to the wood-burning stove is needed to create clean and effective combustion in your HWAM.

Convection
All HWAM and WIKING wood-burning stoves are convection stoves. This means that the wood-burning stove quickly emits heat after lighting.

3 way "Airwash"
Dancing flames are both fascinating and relaxing. Furthermore, flames are beautiful in all phases from the initial lighting to the burning of coals.

Comfort
A HWAM and WIKING wood-burning stove is designed for user-friendliness throughout the duration of its service lifetime.

Materials
Here at HWAM, we have been working with sheet iron for more than 45 years, and we know what advantages it provides for our customers.

Unique Door System
All HWAM & WIKING stoves have an easy and unique door closing system, which ensures that the door fits tightly


Technical data
Energy efficiency class HWAM® Autopilot™ - A
Energy efficiency class HWAM® SmartControl™ - A +
HWAM® Autopilot™ - Yes
HWAM® SmartControl™ - Yes
Efficiency, HWAM® Autopilot™ (%) - 79
Efficiency, HWAM® SmartControl™ (%) - 81
Nominal heat output, HWAM® Autopilot™ (kW) - 4.8
Nominal heat output, HWAM® SmartControl™ (kW) - 4.5
Smoke outlet (Ø) - 5"/6"
Chimney draught, recommended, HWAM® Autopilot™ (Pa) - 12.0
Chimney draught, recommended, HWAM® SmartCntrol™ (Pa) - 11.0

Product measurements (cm)
Height - 100.4
Width - 47.7
Depth - 40.8
Combustion chamber - 33.0

Weight (kg)
Steel cladding, c/m door - 107

Connection measurements (cm)
From floor with Autopilot™, top - 94.8
From floor with SmartControl™, top - 97.5

Fresh air kit
Combustion air system can be mounted, back (Ø 100 mm) - additional purchase - Yes
Combustion air system can be mounted, bottom (Ø 100 mm) - additional purchase - Yes

Distance to combustible materials (cm)
Mantel piece - 45
Floor - 0

Distance to combustible materials Autopilot™ - insulated flue gas pipe (cm)
Behind - 7.5
Side - 22
Sides, in front of the stove - 45
In front - 105
Furnishing in front - 105
Corner, 45° - 10

Distance to combustible materials Autopilot™ - uninsulated flue gas pipe (cm)
Behind - 12.5
Side - 25.5
Sides, in front of the stove - 45
In front - 105
Furnishing in front - 105
Corner, 45° - 12.5

Distance to combustible materials SmartControl™ - insulated flue gas pipe (cm)
Behind - 7.5
Side - 19.5
Sides, in front of the stove - 40
In front - 100
Furnishing in front - 100
Corner, 45° - 10

Distance to combustible materials SmartControl™ - uninsulated flue gas pipe (cm)
1: Behind - 10
Side - 19.5
Sides, in front of the stove - 40
In front - 100
Furnishing in front - 100
Corner, 45° - 10

Approvals
EN 16510 - Yes
BImSchV Stufe 2 - Yes
DEFRA Exempt - Yes
Classificazione - 4 stelle
ECODESIGN Compliant - Yes
HETAS - Yes
